Tesla Model 3 shuts down when you close the door? How to replace the driver seat occupancy sensor yourself
A Romanian DIY video from TesladiyRomania shows, step by step, how to replace the driver seat occupancy sensor on a 2019–2023 Tesla Model 3: tools, the Service Mode check and the torque spec.

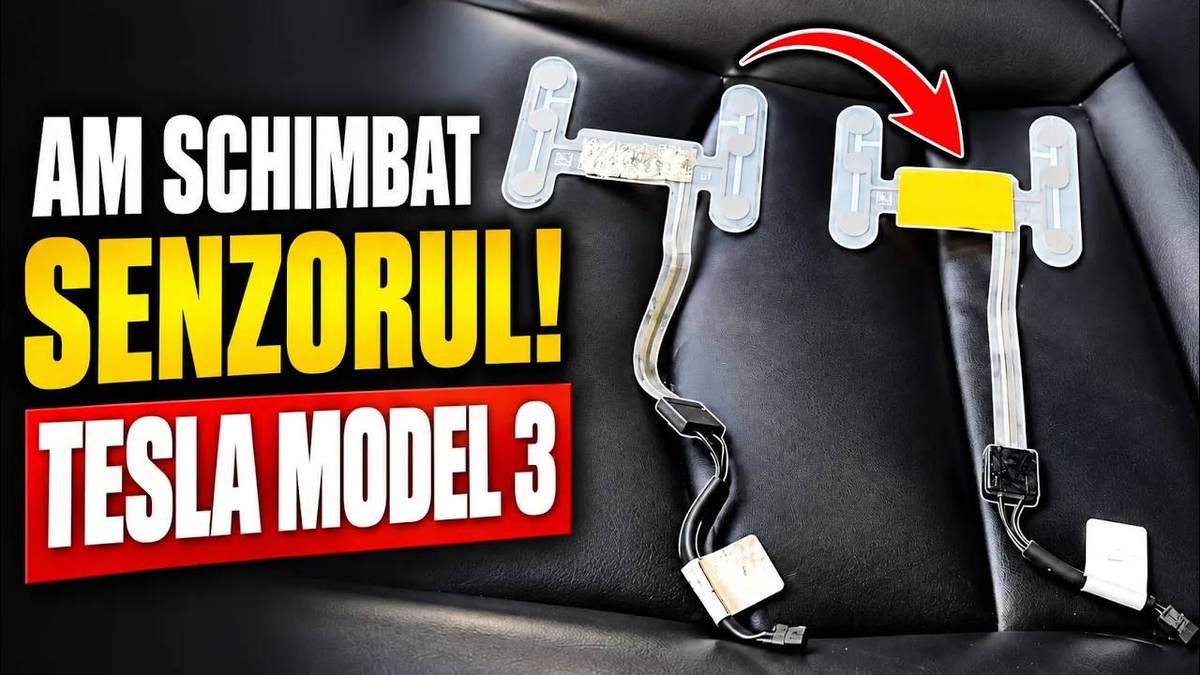

You get into your Tesla Model 3, close the door and everything shuts off (screen, climate, music) until you press the brake. Or you shift into Drive to move the car a metre without your seatbelt, and a few seconds later it drops back into Park. The usual culprit is the occupancy sensor in the driver's seat. Romanian channel TesladiyRomania shows how to replace it yourself in a roughly 41-minute video (in Romanian), without touching the airbag connectors.
How to confirm it's the sensor
In Service Mode, under Safety & Restraints → Seats, the car shows whether each seat is occupied. On the passenger seat, a hand on the cushion is enough to flip it to "occupied". In the video, the driver's seat stayed "unoccupied" with the owner sitting in it, so the sensor had failed.
Tools you need
- Torx T45 for the four bolts holding the seat to the floor;
- Torx T20 for the plastic trim carrying the seat adjustment buttons;
- a small screwdriver or thin tip for the connector clips;
- the replacement sensor (the one in the video came from China and also carries a Tesla label);
- ideally a torque wrench: the manual says 33 Nm; the author used 35 Nm.
The steps, briefly
- Raise the seat fully, slide it back and undo the two front bolts, then slide it forward and undo the rear ones (they have a bit of threadlocker).
- Don't take the seat out of the car and don't unplug the airbag or seatbelt pretensioner connectors. Just tilt the seat back gently against the rear bench. Don't kneel on the seats, or you may break the heating wires.
- Unclip the sensor connector under the seat and keep the small plastic housing, which gets reused.
- Remove the T20 screw and the trim clip, then carefully release the upholstery's plastic rails and Velcro without pulling on any cables.
- Lift the leather just enough to reach the sensor, peel off the old sensor and stick the new one in the same spot, routing its cable through the hole in the foam. The old sensor showed a broken trace exactly where the cable bends.
- Refit every clip along the seam so the upholstery doesn't wrinkle, then the plastic rails, the trim and the connector (cable on the foam side, so it can't snag).
- Put the seat back, start the bolts by hand so you don't cross-thread them, and torque them down.
The final test: as soon as the author sat down, the car woke up by itself, and Service Mode showed the seat as "occupied".
Why it matters
Beyond the fix itself, the author wants to show, in Romanian, that a Tesla "isn't a UFO" and that a lot can be done with hand tools. One firm rule: never touch the high-voltage system. It voids the warranty and can kill you. The author says the procedure should be the same on the Model Y, which uses the same seat, but he hasn't tested it.
